Gravity: Not Just a Suggestion, It's the Law

Here's how I got into the lucrative museum display game.

In 2012, I built my first interactive display for a museum. My daughter Laura is on the staff of the USS Hornet Aircraft Carrier Museum in Alameda, Calif. That's the ship that picked up Apollos 11 and 12, so they've got some nifty Space Age artifacts. Laura was redoing the ship's Apollo Exhibit, and I got to build a box comparing gravity on Earth to gravity on the Moon (one-sixth as strong) via the highly scientific means of pulling handles that look like Wile E. Coyote TNT plungers.

If you drop by the USS Hornet, be sure to say "Hi" for me.

It turns out that kids love making a lot of noise banging and clanging things. Who knew?

Enter a gentleman named Ken Winans, who serves on the Hornet's board of directors, has one of the largest private collections of space artifacts, and runs a small storefront museum in Novato, Calif., called the Space Station Museum where Laura worked for a while. Ken recently opened a new room nearly filled by a 9/10th-scale replica of a Lunar Module. A few months ago, Ken contacted me and said, "Hey, what would it take for you to build me one of those boxes?" As it turned out, not much.

So three summers after I built my first "Gravity Box" I built my second in my driveway, and immediately hit a snag. My plans and notes from my first box were lousy. My dimensions weren't clear, my diagrams didn't match the photos; hey, I made it up as I went! So the first thing I did was send Laura up to her Apollo Exhibit to measure the prototype for me and reverse-engineer how I put it together in the first place.

After that, it was a breeze.

The basic frame in 2x4s and pressure-treated 4x4s. More 4x4s were added later. Not all of them were needed structurally--some were just to add weight, so that kids yanking the handles wouldn't nudge it across the floor.

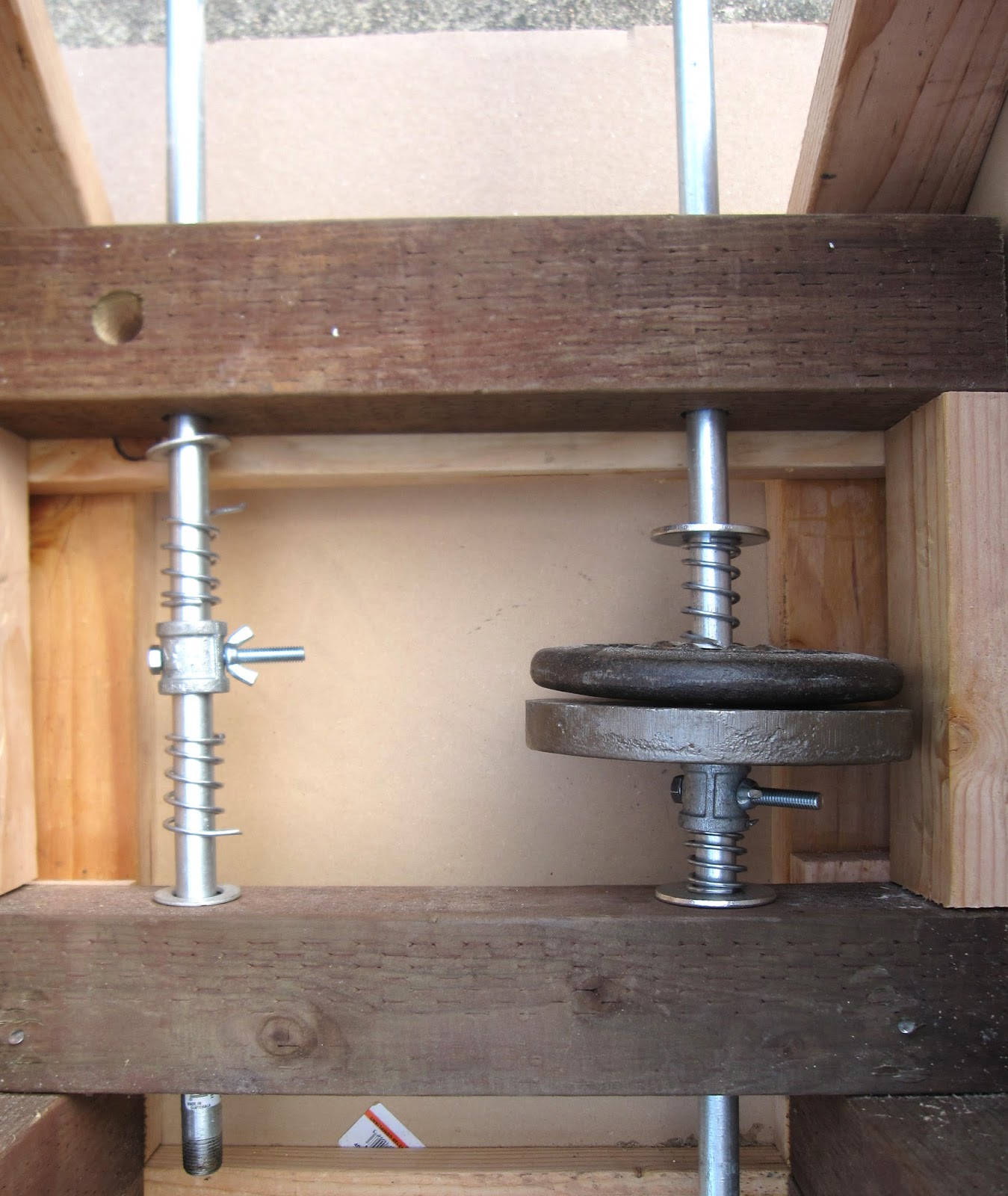

A peek at the guts. The steel pipes of the handles themselves weigh 4 pounds. Add 20 pounds of weight to one of them, and it weighs 24 pounds--six times as much as the other, exactly the difference between Moon gravity and Earth gravity. The pipes pass through holes drilled through two 4x4s. That extra hole at upper left is what we in the museum display racket call "a value-added accessory."  Sounds better than "a mistake."
The cabinet is medium-density fiberboard (MDF), which I like for its smoothness and strength. It's also heavy.
Painting. I offered to make it any color Ken wanted, but he wanted to stick with Hornet Navy Blue.
Gluing on the information panel. This is a poster I designed and had printed by VistaPrint. It's on good thick paper, they do quality work.
Here's what the poster looks like. I cut off the bottom part to glue to the front of the box. Notice the lack of units on the weights: doesn't matter if you're talking pounds, kilograms or troy ounces, the ratio is always six to one.

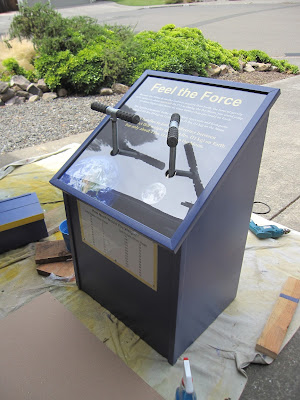

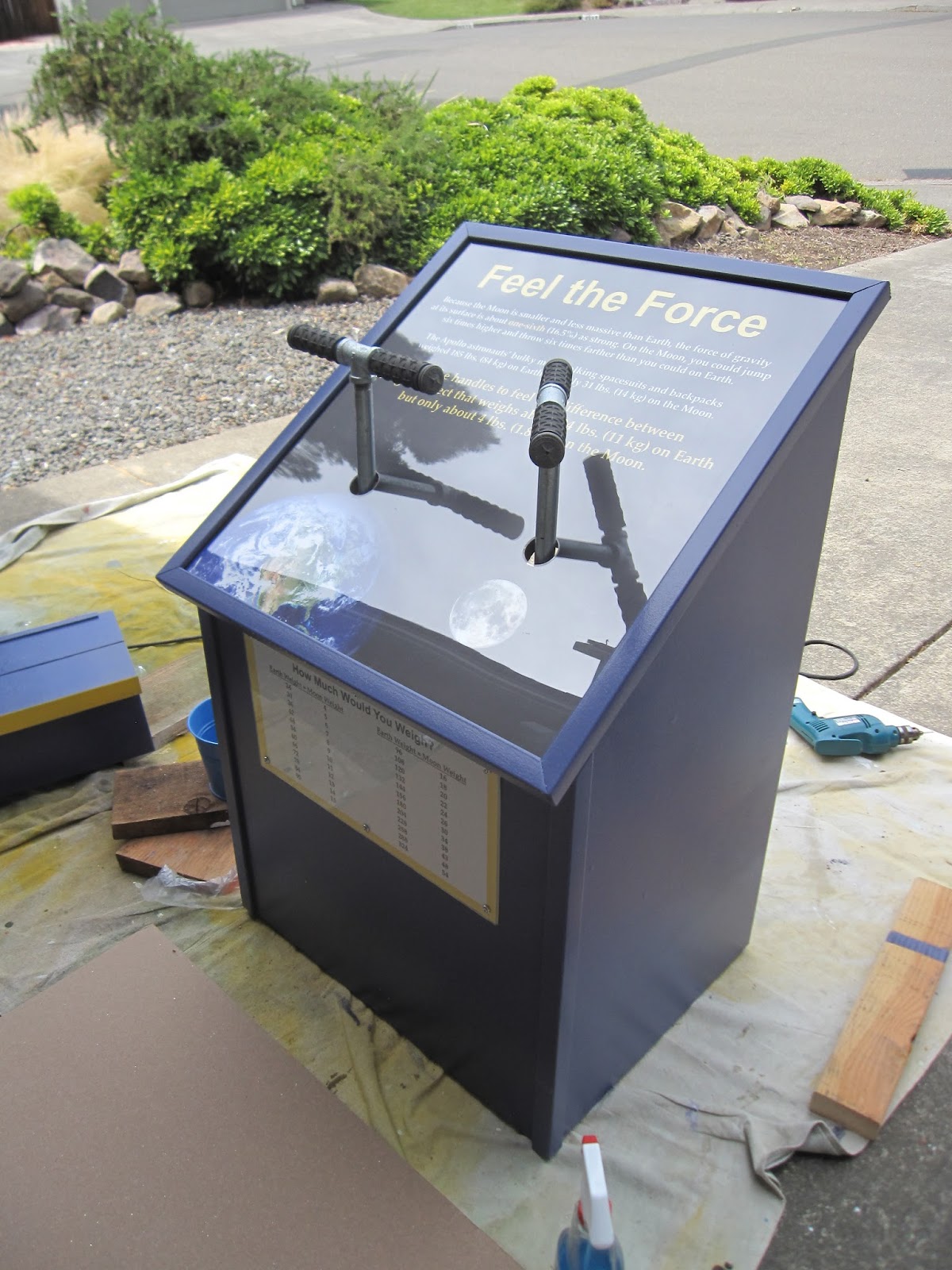

Almost done. The posters are covered by sheets of acrylic, which are designed for easy replacement if somebody scratches them up. I also built a step, half visible to the left.
Dropped off at the Space Station Museum, next to a Saturn V model and a Soyuz control panel. The best part about making this delivery is that, while the Gravity Box was sitting outside on the sidewalk, two boys came up and began playing with it. Success!
Satisfied customer Ken Winans.

This time I took thorough notes and carefully documented every step in photographs, absolutely guaranteeing that nobody will ever ask me to make another one again.

If you'd like to play with an Original Fies Industries Gravity Box™, visit the USS Hornet anytime OR drop by the free Space Station Museum some weekend. In fact, I'd recommend next weekend because Ken is hosting his annual Novato Space Festival on Saturday, August 1, from 10 a.m. to 4 p.m. You can meet astronauts and NASA scientists there, and see all kinds of cool stuff. Did I say FREE?!

This was a fun project.
